The New Axial-Flow combines from International Harvester, these combines revolutionized harvesting on its debut in 1977 with an efficient threshing rotor placed on its Axis. This new style of threshing gives you better grain quality with less grain damage due to the fast, hard beating grain receives in a conventional combine. You also get exceptional separation with the Axial-Flow method, gone are the days with straw walkers simply walking the crop out, with the rotor you get throughout separation with the help of centrifugal force. You'll find that the new Axial-Flow combines will get you more of what you grow
How does an Axial Flow combine work? Your crop is fed through the feeder-house where the rotors impeller gathers the crop and starts it rearward in a spiral movement. At the first point, the rasp bars on the rotor ring it around and thrash the crop against the concaves repeatedly. Then the crop continues in its rearward spiral to the separating grate where centrifugal force affects optimal separation. A bed of augers under the rotor carry the grain to a traditional cleaning system with 2 sieves where air blasts through them, this air blast pushes the chaff fines out the back of the combine where spreaders kick it out. The clean grain falls through the sieves into the bottom grain pan where an auger and elevator carry the grain to the grain tank. Now that you know how these combines work. lets get into what you get in this big pack!
Included are;

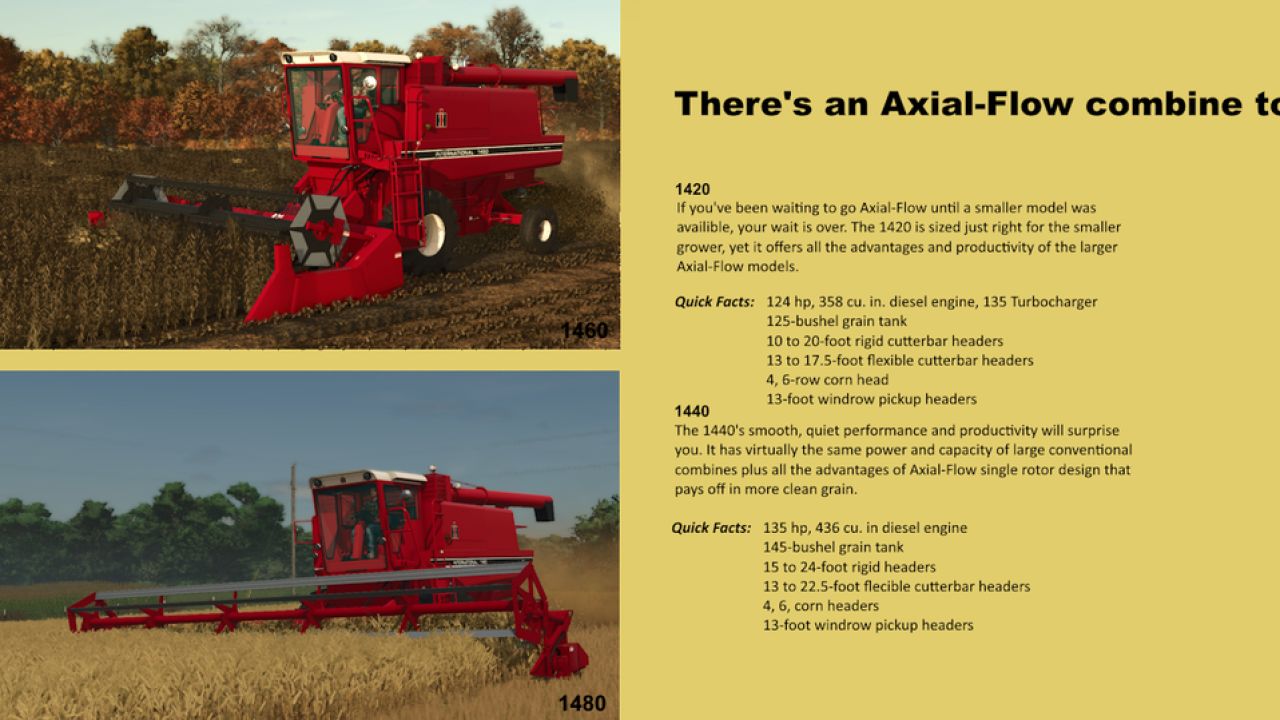

1420:
20" Diameter, 108" length rotor
3,747 sq. in. cleaning area
125 bushel grain tank capacity
Bin Flaps
14' Auger
D358 124hp / Turbocharged
18.4-26 tire size
2wd and Power Guide Wheel Assist
1440:
24" Diameter, 108" length rotor
4,750 sq. in. cleaning area
145 bushel grain tank capacity
Bin Flaps
Extension
Ext. Flaps
14' Auger
16' Auger
D436 135hp
23.1-26 tire size
2wd and Power Guide Wheel Assist
1460:
24" Diameter, 108" length rotor
4,750 sq. in. cleaning area
180 bushel grain tank capacity
Ext. Flaps
16' Auger
DT436 180hp
23.1-26 tire size
30.5-32 tire size
2wd and Power Guide Wheel Assist
1480:
30" Diameter, 108" length rotor
6,420 sq. in. cleaning area
208 bushel grain tank capacity
Ext. Flaps
16' Auger
20' Auger
DT436 190hp / DT466 210hp
30.5-32 tire size
Options
2wd and Power Guide Wheel Assist
B.F. Goodrich, BKT, Goodyear, and Firestone tires
Beater / Chopper
Fan Belt Shields, Fan Air Inlet Shield
1977-1979, 1980-1984, 1985 Case International model dates
International Yield Monitor
Rotary Air Discharge Screen

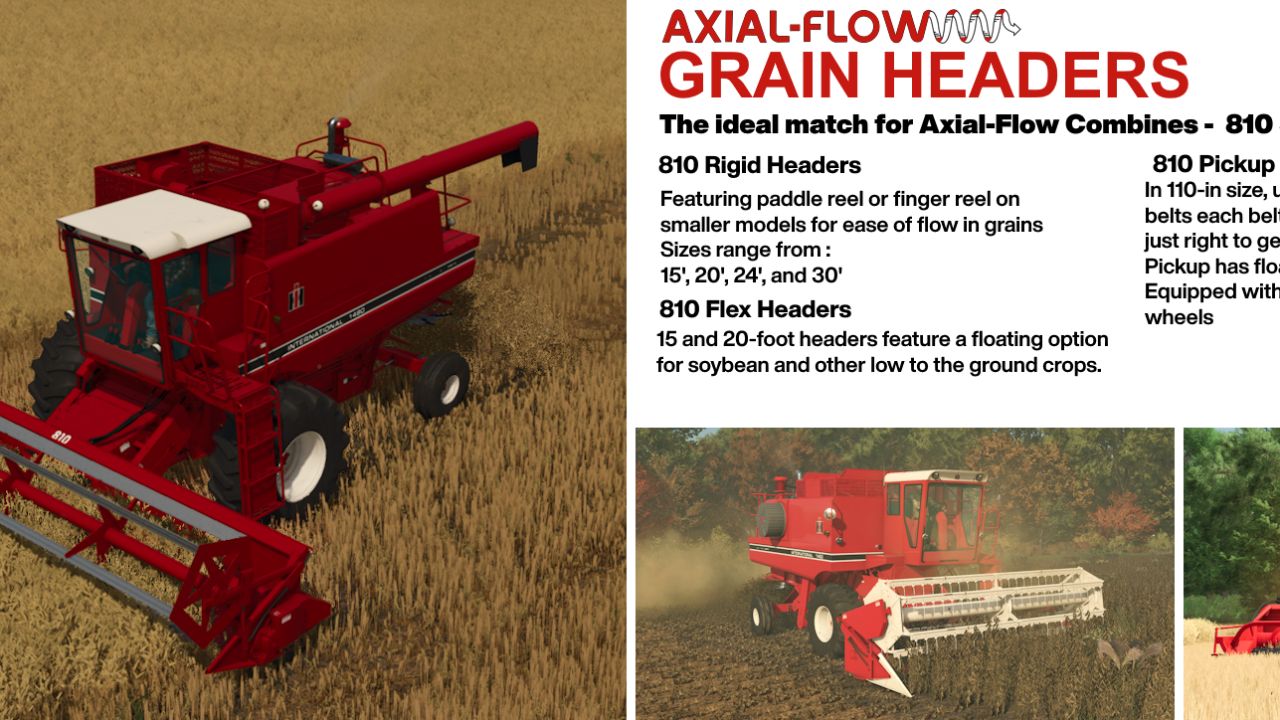

Headers
810 Rigid Header, 13' pickup, 15', 20', 24', 30'
820 Flex Header, 13' 15' 20' 22.5'

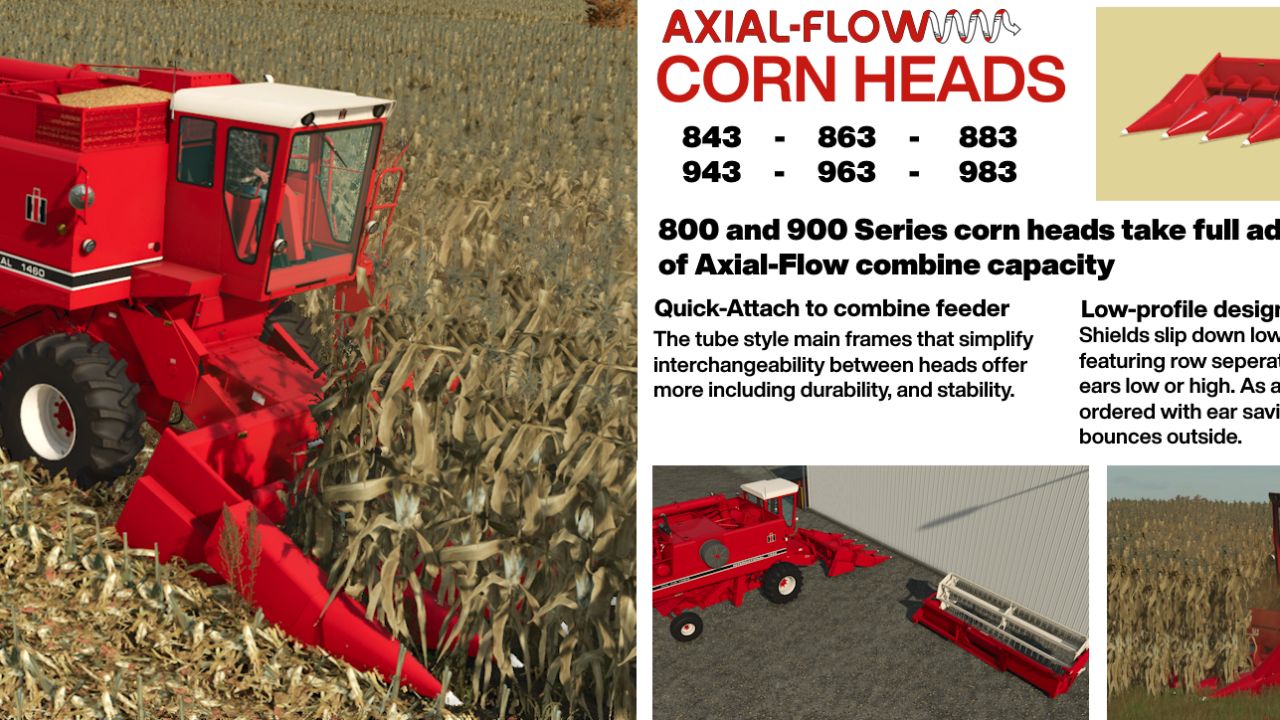

800-900 Corn Header, 4, 6, 8 row
This mod does feature Interactive Control.
Once again I consider this combine close to me, a project that has stretched since November of 2022 and continues to hold true today. I dont ever think I will ever be stepping away from this Axial Flow project as I hope to continue expanding these combines as time goes on but until then, the tried and true 14 series combines returns again for another year. Thank you to all who have supported this project from start to the next phase.
Interactive Control
