Pichon 18000L

0%
55%
100%
23 Aug.

Plunger arm finished, start of pump

August 23rd, 2021 15:35

Here is the progress of the week: creation of the pipe support, storage box, etc. Plunger arm finished (I still have the hoses to finish), creation of the pipe + turbine / accelerator on the top of the tank as well as the start of the pump.

See more
(Automatically translated from French)
Plunger arm finished, start of pump
Plunger arm finished, start of pump
Plunger arm finished, start of pump
    05 Aug.

    Beginning of the plunger arm

    August 5th, 2021 08:51

    Rear hitch finished, start of the pumping arm (plunger), there is still a lot of work around the arm but the big one is done ...

    See more
    (Automatically translated from French)
    Beginning of the plunger arm
    Beginning of the plunger arm
    Beginning of the plunger arm
      03 Aug.

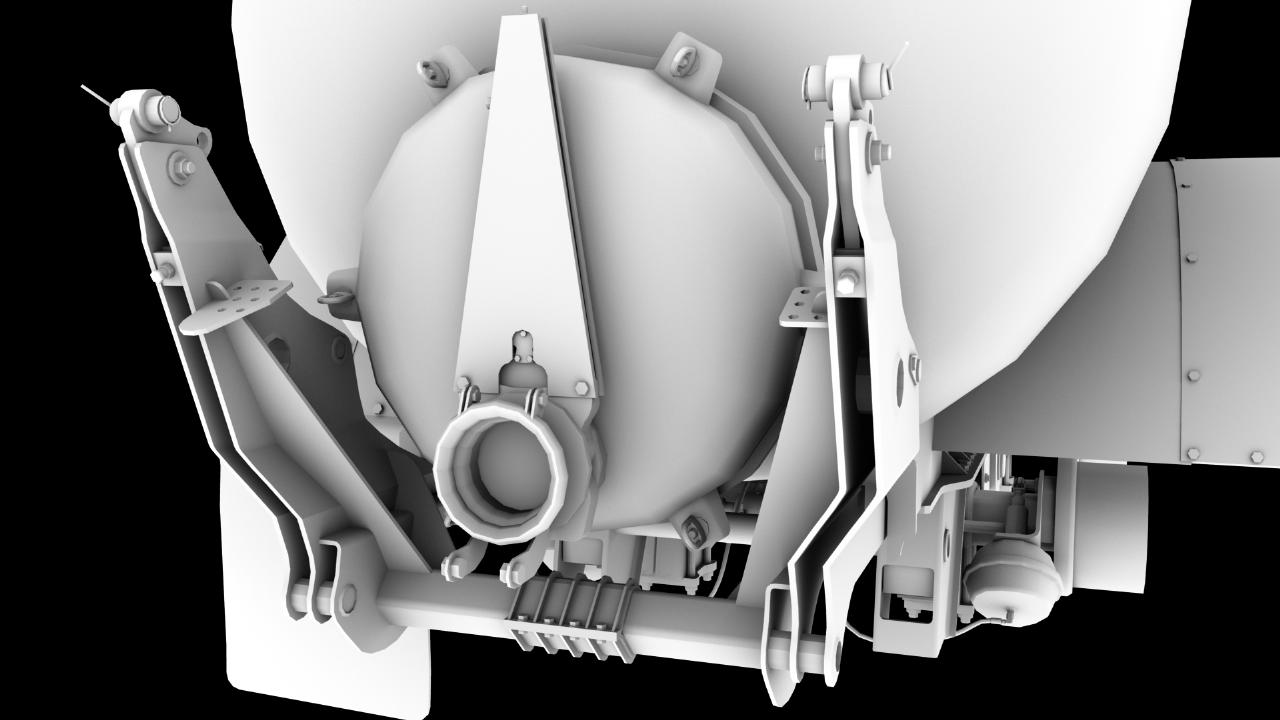

      Rear linkage

      August 3rd, 2021 11:31

      Creation of the rear of the tank and of the lift, there are still a few odds and ends to do on it (jacks, jacks supports, etc.).

      See more
      (Automatically translated from French)
      Rear linkage
      Rear linkage
